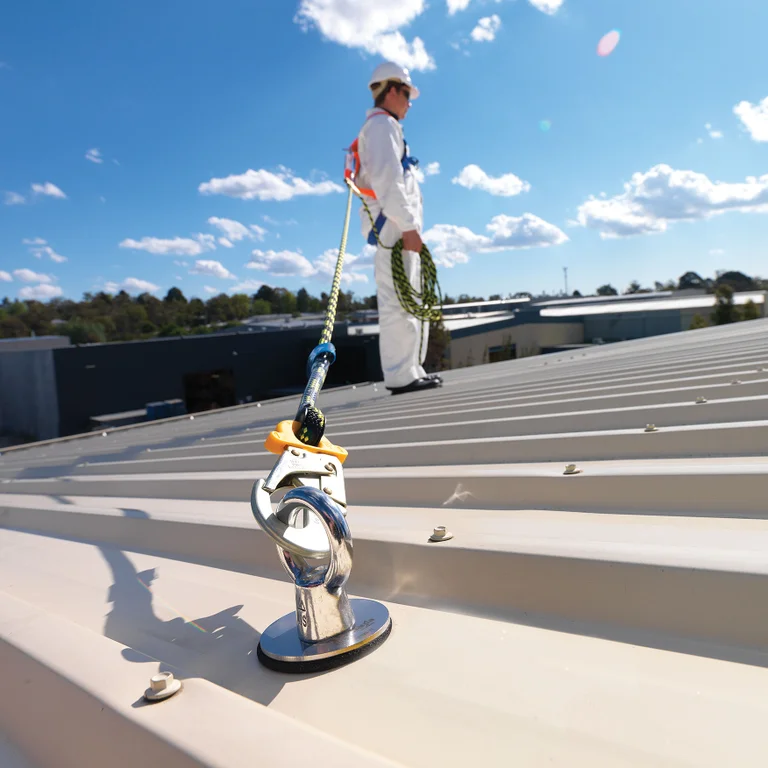

Kattsafe AP123 Purlin Mount Anchor Point
Purlin Mount Anchor
Key product features:
- Available in three different variations to suit flat, corrugated and square corrugated roofs
- Rated to 15kN
- Suited for fall arrest or twin rope access use
- Stainless steel eyebolt for easy snap hook attachment, with a 50kN tensile load ability
- O-ring seal designed to be protected from exposure to UV
- Large support flange increases penetration seal area, and is protected with an EPDM seal
- Stainless steel anchor block with rounded edges for easy installation
- High-strength M16 stainless steel construction eyebolt shank
COMPLIANCE
DOWNLOADS
Key product features
- Available in three different variations to suit flat, corrugated and square corrugated roofs
- Rated to 15kN
- Suited for fall arrest or twin rope access use
- Stainless steel eyebolt for easy snap hook attachment, with a 50kN tensile load ability
- O-ring seal designed to be protected from exposure to UV
- Large support flange increases penetration seal area, and is protected with an EPDM seal
- Stainless steel anchor block with rounded edges for easy installation
- High-strength M16 stainless steel construction eyebolt shank
Installation details
Installation must be carried out by an accredited Kattsafe Fall Protection Certified Technician, and in accordance with the manufacturer’s installation instructions. It can be installed during roof construction or as a retrofit from the top of the roof surface.
Product warranty
10 Years from the date of purchase, subject to correct installation. Use and maintenance to be in accordance with the manufacturer’s specifications and recommendations. (This excludes wearing parts).
Terms & Conditions:
All warranty claims must be made in writing within 14 days of the appearance of the defect.
Testing & Approvals
Testing and performance based on requirements of Australian & New Zealand Standard AS/NZS 5532:2013.
-
Dynamic load tested: 15kN
-
Static load tested: 15kN
The Whole Height Solution.
From The Team You Already Trust.
Thinking of your next project? Let's chat.
COMPLIANCE
-
The AP123 purlin mount anchor is designed and manufactured to conform to requirements of Australian and New Zealand standard AS/NZS 5532:2013, AS/NZS 1891.4:2009 and relevant statutory WHS Codes of Practice/Guidelines.
DOWNLOADS
-
Specification Sheets
Kattsafe AP123 Purlin Mount Anchor Point Specification Sheet PDF
