MONKEYTOE GRATING SYSTEMS

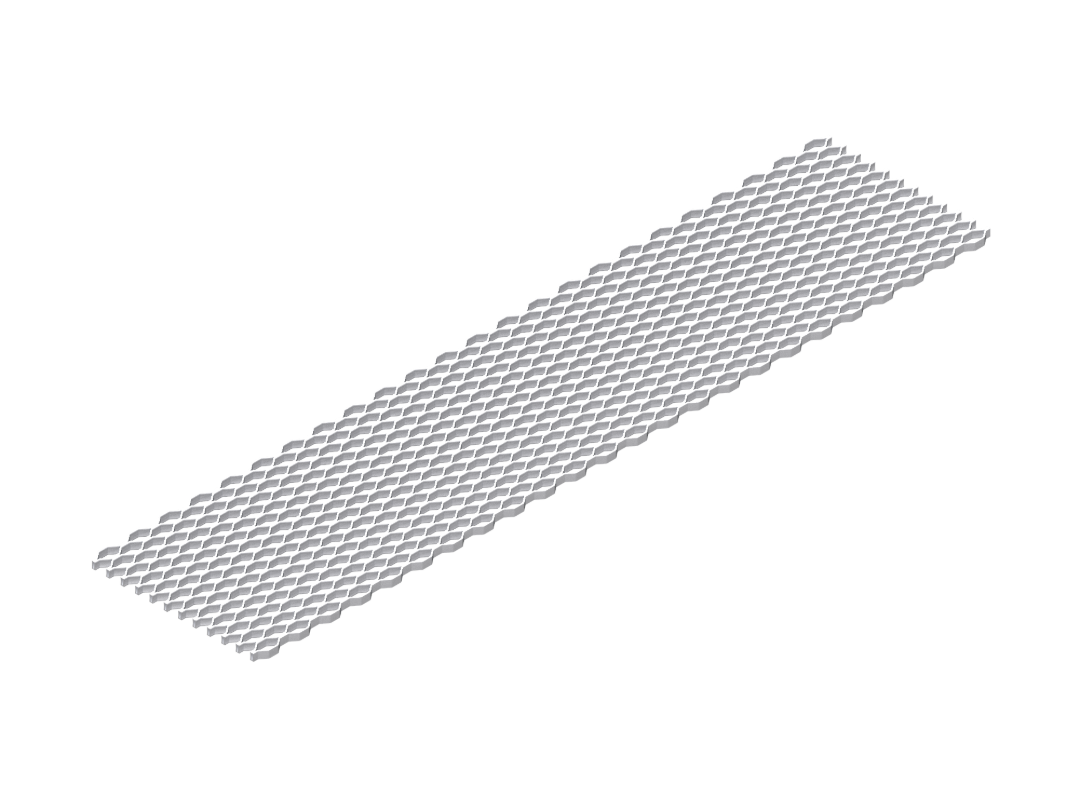

XGRATE Grating System
Aluminium, Lightweight Grating System
Monkeytoe X-Grate is a revolutionary lightweight aluminium grating system designed for strength, durability, and ease of installation.
COMPLIANCE
DOWNLOADS
What are some of the typical applications?
What are the benefits of XGRATE?
Can XGRATE be used with existing structural steel beams?
Tests, approvals & standards
The Whole Height Solution.
From The Team You Already Trust.
Thinking of your next project? Let's chat.
OUR CLIENTS INCLUDE
What are some of the typical applications?
The Monkeytoe XGRATE Grating System can be utilized with XBEAM Platforms, Purlin Mount Platforms, Chiller Decks, Gantry Walkways and any structure where grating is required over steel supports.
What are the benefits of XGRATE?
• Non-corrosive marine-grade aluminium
• Quick install, low maintenance
• Fully recyclable and sustainable
• Galvanically isolated connection to steel structure via
Geomet coated beam clamp
• Onsite Flexibility: Ability to be cold cut onsite without recoating
• Options to reduce weight by 60%+ or Embodied Carbon by 70%+

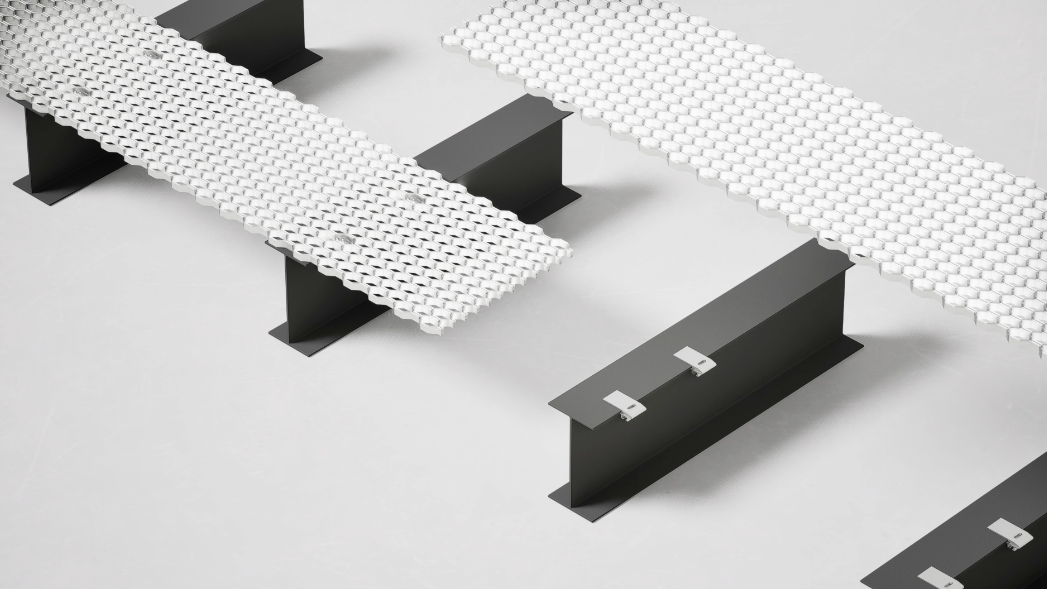

Can XGRATE be used with existing structural steel beams?

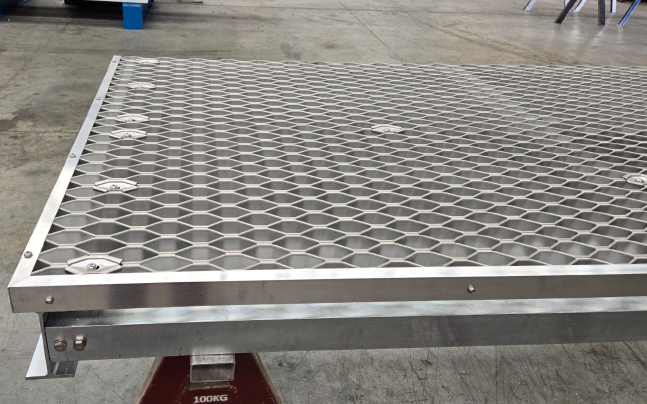

Tests, approvals & standards
• Fully documented testing to ensure compliance to the building code. This includes deflection, distributed and point loads, etc.
• AS 1657:2018 Fixed platforms, walkways, stairways and ladders
• AS/NZS 1170.0 General Principles
• AS/NZS 1170.1 Permanent , Imposed and other actions
• AS/NZS 1170.2 Wind Actions
• AS/NZS 1170.4 Earthquake actions in Australia
• AS/NZS 1866:1997 Aluminium and aluminium alloys – Extruded rod, bar, solid and hollow shapes
• AS/NZS 1664.1:1997 Aluminium structures – Limit state design
COMPLIANCE
• AS 1657:2018 Fixed platforms, walkways, stairways and ladders
• AS/NZS 1170.0 General Principles
• AS/NZS 1170.1 Permanent , Imposed and other actions
• AS/NZS 1170.2 Wind Actions
• AS/NZS 1170.4 Earthquake actions in Australia
• AS/NZS 1866:1997 Aluminium and aluminium alloys – Extruded rod, bar, solid and hollow shapes
• AS/NZS 1664.1:1997 Aluminium structures – Limit state design
