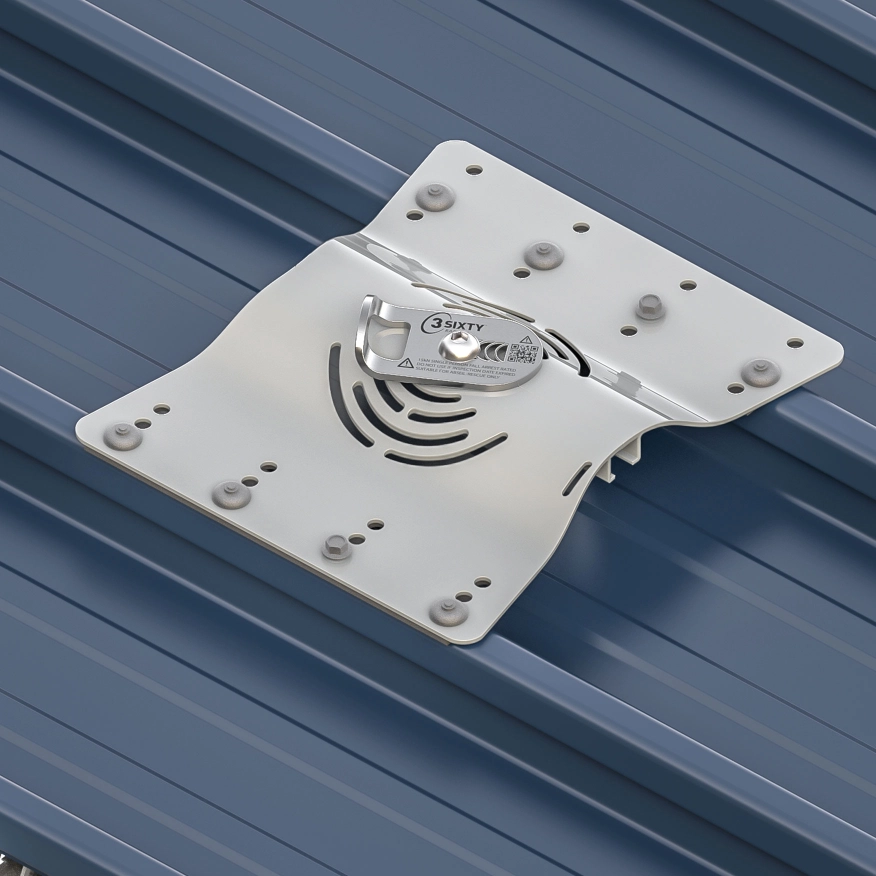

Kattsafe AP135 Top Mount Anchor
Rapid Installation, Fall Protection Anchor

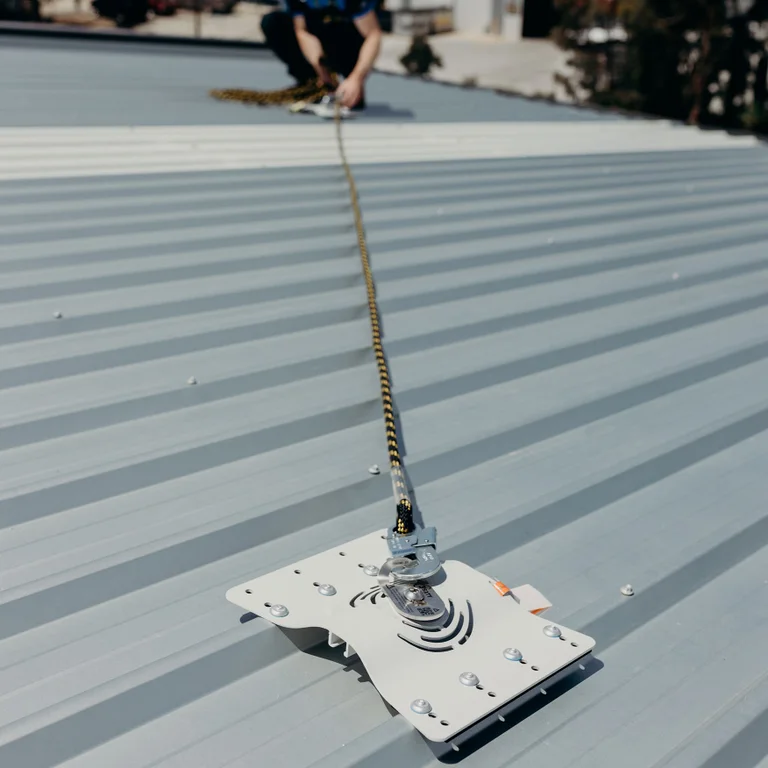

The AP135 top mount anchor is designed for a simple, rapid installation, the rapid top mount anchor provides effective fall protection when working at heights. The anchor is designed to be installed with rivets only and connected to 2 roof sheets for added strength.
Key product features:
- Fall arrest use
- Rated to 15kN
- Allows connection to 2 roof sheets, increasing anchor redundancy
- Maximum energy-absorbing ability
- Rope access rescue ability from an activated anchor
- Powder-coated finish for dissimilar metal protection
- Weight: .8kg (including fixings)
COMPLIANCE
DOWNLOADS
Key product features
- Fall arrest use
- Rated to 15kN
- Allows connection to 2 roof sheets, increasing anchor redundancy
- Maximum energy-absorbing ability
- Rope access rescue ability from an activated anchor
- Powder-coated finish for dissimilar metal protection
- Weight: .8kg (including fixings)
Installation details
Installation must be carried out by an accredited Kattsafe Fall Protection Certified Technician, and in accordance with the manufacturer's installation instructions. It can be installed during roof construction or as a retrofit from the top of the roof surface.
Product warranty
10 Years from the date of purchase, subject to correct installation. Use and maintenance to be in accordance with the manufacturer’s specifications and recommendations. (This excludes wearing parts).
Terms & Conditions:
All warranty claims must be made in writing within 14 days of the appearance of the defect.
Testing & Approvals
Testing and performance based on requirements of Australian and New Zealand Standards AS/NZS 1891 and AS/NZS 5532.
- Dynamic load test in line with roof fall and 90° to roof fall - 15kN
- Static load test in line with roof fall and 90° to roof fall - 15kN
COMPLIANCE
The rapid top mount anchor is designed to conform with requirements of the Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846, AS/NZS1891 and relevant codes of practices and guidelines.
DOWNLOADS
SPECIFICATION SHEETS
Kattsafe AP135 Rapid Top Mount Anchor Specification Sheet PDF
Technical Drawings
Kattsafe AP135a Top Mount Anchor - Fixed to Metal Battens
Kattsafe AP135a Top Mount Anchor - Installation Details
Kattsafe AP135a Top Mount Anchor - Installation Guide - Screw Fix Roofs
