RAIL SYSTEM

Bomac Altrac Overhead Rail System

Adaptable, Lightweight Aluminium Rail System

Rail Systems

Altrac by Bomac is an Australian-owned, lightweight aluminium rail system that's adaptable, low-maintenance, and safety tested for diverse applications across manufacturing, tourism, education, and construction.

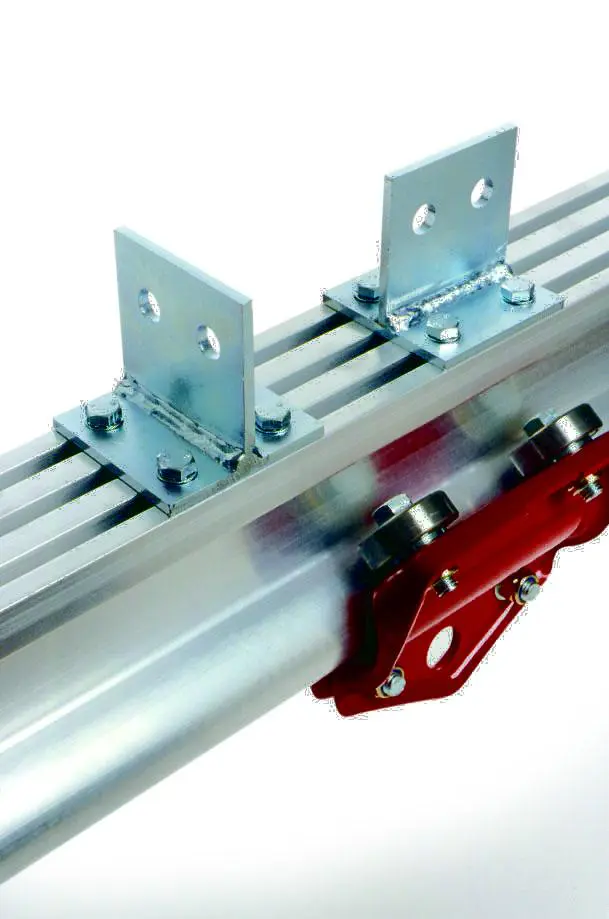

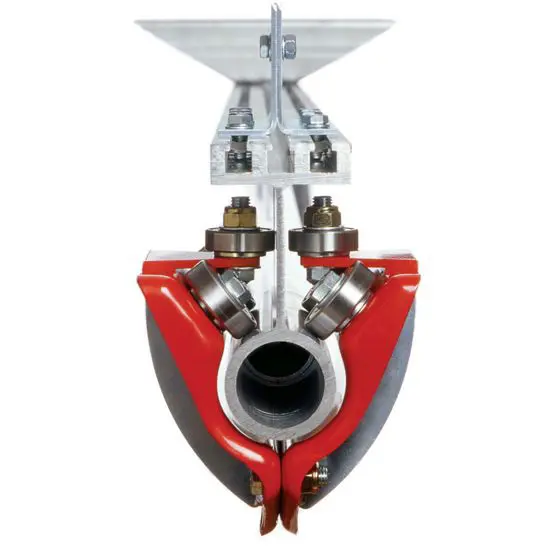

Extruded from Australian aluminium, each batch is NATA certified for quality. The system features T-slots for flexible mounting options and a circular rolling track that resists dirt buildup and is easy to clean. Available in lengths up to 12m and easily extended with splice kits, Altrac offers a cost-effective, easy-to-install solution used by hundreds of Australian organisations.

Key product features:

  • High-strength & tested - Meets Australian Standards, less than 7kg per metre
  • Easy installation - Pre-engineered modular system, bolt-together assembly with basic tools only
  • No welding required - Eliminates fire/safety hazards during installation
  • Lengths up to 12m - Easily connected or extended; available in curved sections for monorail/gantry applications
  • Low maintenance - Rounded track resists dirt and dust buildup; no rust stains
  • Architectural appeal - Smooth lines suitable for building design projects
  • Flexible & relocatable - Can be extended or moved to new facilities as needed
  • Hygienic design - Ideal for food, beverage, and pharmaceutical applications
ENQUIRE NOW
SPECIFICATIONS
DOWNLOADS
Key product features
  • High-strength & tested - Meets Australian Standards, less than 7kg per metre
  • Easy installation - Pre-engineered modular system, bolt-together assembly with basic tools only
  • No welding required - Eliminates fire/safety hazards during installation
  • Lengths up to 12m - Easily connected or extended; available in curved sections for monorail/gantry applications
  • Low maintenance - Rounded track resists dirt and dust buildup; no rust stains
  • Architectural appeal - Smooth lines suitable for building design projects
  • Flexible & relocatable - Can be extended or moved to new facilities as needed
  • Hygienic design - Ideal for food, beverage, and pharmaceutical applications
Installation details

Installation should be carried out by a manufacturer trained technician who is familiar with the parameters of fall arrest and abseil systems.

Product warranty

Bomac Altrac Overhead Rail Abseil System has a product warranty of 10 years from the date of installation. The warranty is invalidated if inspections are not maintained every 12 months by a qualified height safety system equipment inspector.

Testing & Approvals

Conforms to AS/NZS 1891.2:2001 - Industrial fall-arrest systems and devices - Horizontal lifeline and rail systems

AS/NZS 1891.4:2009 - Industrial fall-arrest systems and devices - Selection, use and maintenance, AS/NZS

4488.2:1997 Industrial Rope Access Systems - selection, use, and maintenance

Monkeytoe Roof Hatch

TECHNICAL SPECIFICATION

  • Aluminium Alloy - 6005A-T5
  • Overall Height: 160mm
  • Overall Width: 75mm
  • T Slot centres: 22.5mm
  • Weight: 6.7kg/m

DOWNLOADS

Specification Sheets

Bomac Altrac Overhead Rail Specification Sheet
