Rostek Horizontal Monorail Rail System
Provides Abseil & Suspended Hands-free Access
Rostek Horizontal Monorails provide either abseil or suspended stage access to the external facade or internal atrium.
HOW IT IS USED

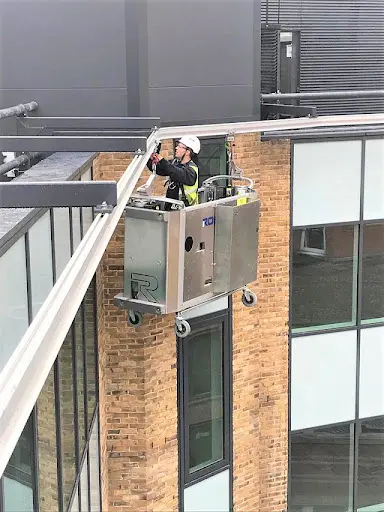

The Rostek Horizontal Monorail provides a continuous anchorage point for suspended access. It can be used for an abseil or can carry a suspended stage. Manual, rope-driven, or electric trollies are available to move along the rail.
HOW IT WORKS
Three different rail profiles are available. 2 top fixed and 1 side fixed. The RS111 has a typical bracket spacing of 2.0m - 2.5m. The RS133 has a typical bracket spacing of 2.7m - 3.6m. The RS163 has a typical bracket spacing of 3.5m - 4.5m. The minimum bending radius of each rail is 500mm. Every single trolley has a maximum load of 500kg.
Key product features:
- Provides asbseil or suspended stage access to building facades
- Manual, rope-driven or electric trollies available
- 500kg maximum load for all trollies
- Three different roof profiles available
- Continuous anchorage point for building maintenance
COMPLIANCE
DOWNLOADS
Key product features
- Provides asbseil or suspended stage access to building facades
- Manual, rope-driven or electric trollies available
- 500kg maximum load for all trollies
- Three different roof profiles available
- Continuous anchorage point for building maintenance
Installation details
Installation must be carried out by Rostek certified installation companies and in accordance with all manufacturer requirements.
Product warranty
Rostek grants a warranty for 12 months from the date of purchase. The warranty covers: defects in material, defects in workmanship, and anti-corrosion coating defects.
Testing & Approvals
